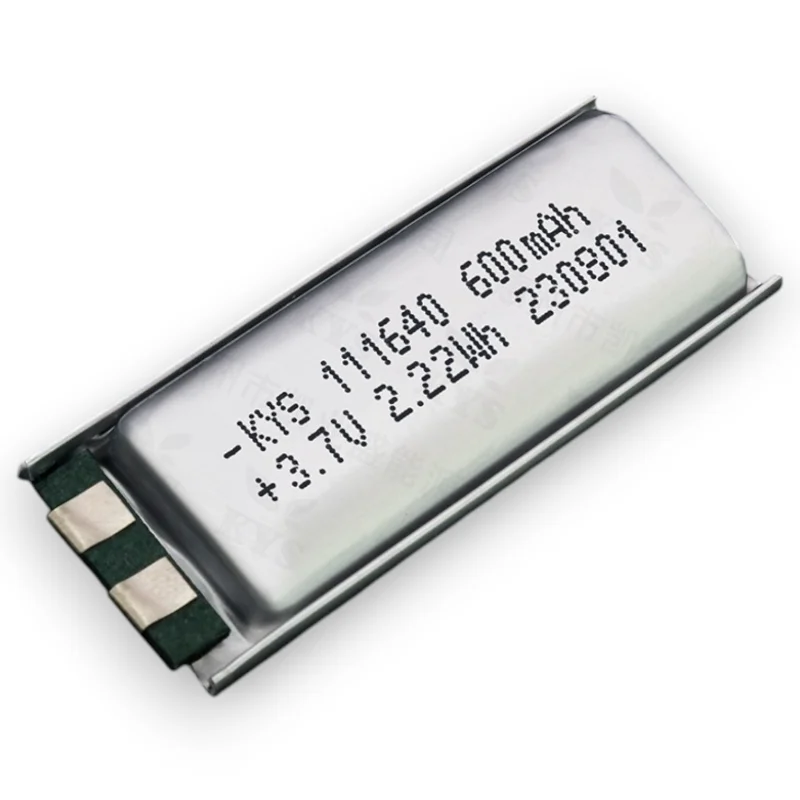

111640 Batería OEM de polímero de litio

OEM Lithium Polymer Battery Structure Overview

Manufacturers build the OEM lithium polymer battery with tabs on the same side by arranging electrode layers inside a laminated pouch system. First, engineers align the cathode and anode foils in a parallel stacked structure, and they position both current collector tabs on the same edge to simplify external connection routing. Then, they insert a microporous separator between electrode layers to maintain ionic isolation while allowing lithium-ion transfer. After that, technicians fix the entire stack through precision alignment fixtures before transferring it to the next process stage.

Material System and Electrode Preparation

Producers coat lithium metal oxide active materials onto aluminum foil to form the cathode, and they apply graphite-based slurry onto copper foil to construct the anode. Meanwhile, they mix conductive carbon and polymer binders into a stable slurry system to ensure uniform dispersion. In addition, they dry the coated electrodes under controlled temperature conditions to remove residual solvents, and they perform calendering to improve density consistency and surface adhesion. Subsequently, they slit the electrodes into defined widths to match OEM dimensional requirements.

Tab Arrangement and Structural Integration

Technicians position both cathode and anode tabs on the same side of the cell, and they weld them using ultrasonic or resistance welding methods to ensure low-resistance electrical joints. Moreover, they reinforce the tab exit area with insulation layers to prevent short circuits during later sealing steps. After welding, operators route the combined tab structure through a single exit zone of the pouch, and they carefully maintain spacing to avoid mechanical stress on internal layers. Meanwhile, they verify alignment accuracy before sealing operations begin.

Control de Ciclos de Formación y Estándares de Calidad

Technicians initiate formation cycling to activate electrochemical interfaces and stabilize internal SEI layers under controlled charge-discharge profiles. Afterwards, they conduct aging tests to evaluate voltage consistency and internal impedance behavior over time. Finally, quality teams perform dimensional inspection, weld strength testing, insulation resistance measurement, and leakage detection in accordance with IEC 62133 and UN38.3 standards, ensuring each OEM lithium polymer battery meets strict manufacturing and transport safety requirements.

Características del producto

1. 🛠️ Personalizable
   Personalizable para satisfacer las necesidades del cliente
2. ⚡ Alta potencia
   Tasa máxima de descarga de 20ºC disponible
3. ⏱️ Vida Larga en Ciclo
   Cubre las necesidades de uso a largo plazo del producto
4. 🛡️ Alta seguridad
   Superó pruebas de seguridad exhaustivas
5. 🔋 Capacidad Nominal Verdadera
   Coincide con la capacidad de diseño del producto
6. ⚛️ Opciones Multi-Química
   Cubre sistemas LCO, NCM, NCA y LFP
7. 🧰 Mecanismo de Protección Múltiple
   Placa de protección integrada con protección contra sobrecarga, sobredescarga, sobrecorriente y cortocircuitos

Áreas de aplicación de productos

Este producto es adecuado para una variedad de dispositivos electrónicos portátiles y eléctricos, con aplicaciones típicas que incluyen:

• Cuidado personal y salud: Cepillos de dientes eléctricos, dispositivos de belleza, rastreadores de actividad física, dispositivos médicos

• Digital y Audio inteligentes: Auriculares, altavoces, nebulizadores, juguetes, luces

• Pago financiero y oficina: Máquinas POS, fichas USB, impresoras portátiles
