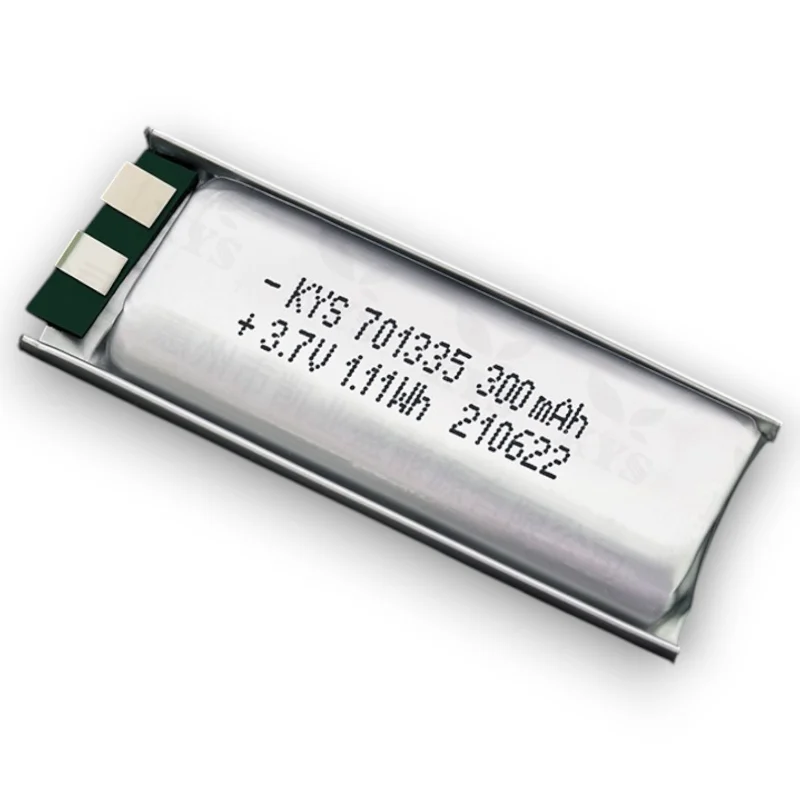

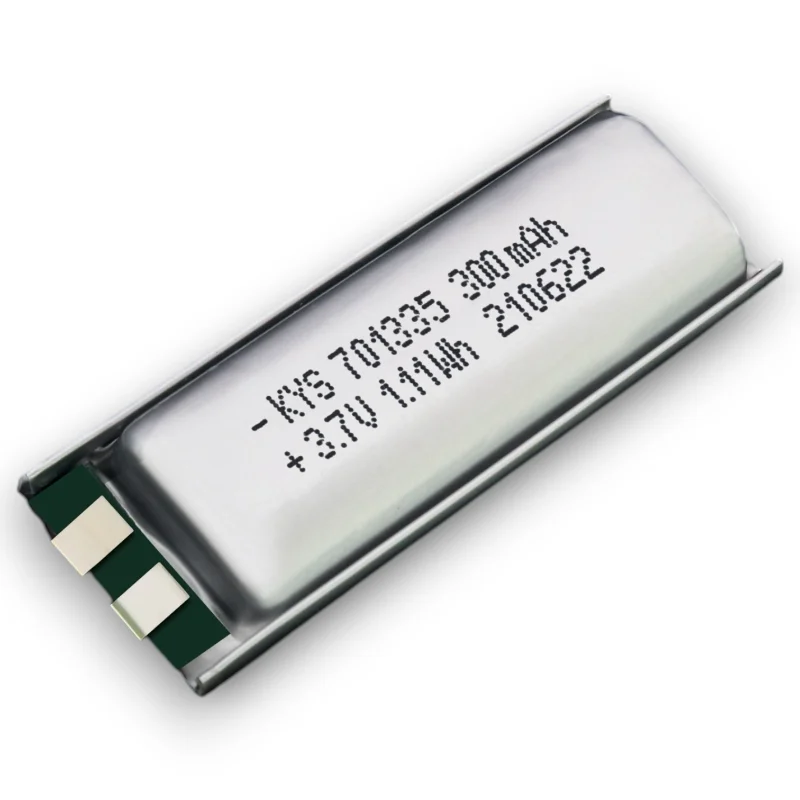

701335 Paquete pequeño de baterías de litio de 3,7V

A 3.7V small lithium battery pack integrates lightweight lithium-ion pouch cells with precise voltage control architecture. Manufacturers typically configure the pack in a single-cell (1S) structure, and therefore it maintains a nominal output of 3.7V with a full charge threshold of 4.2V. Meanwhile, engineers carefully stabilize discharge cut-off near 2.75V to prevent deep depletion and cell stress. As a result, electrical behavior remains consistent across repeated charge cycles.

Cell Composition and Materials

The pack commonly uses lithium cobalt oxide or blended lithium-ion chemistry, combined with aluminum-laminated polymer film. In addition, internal electrodes are arranged through layered coating technology, which improves ionic conductivity and structural uniformity. Copper and aluminum current collectors are selected to reduce internal resistance while maintaining stable electron transfer. Furthermore, insulating separators are inserted between electrodes to prevent internal short circuits and ensure structural safety under vibration conditions.

Structural Design and Assembly Process

During production, cells are first matched by capacity and impedance to reduce imbalance within the pack. Next, spot welding connects nickel strips to form a secure electrical pathway, and this process minimizes thermal distortion. Subsequently, a protection circuit module (PCM) is integrated to manage overcharge, over-discharge, and over-current conditions. After assembly, technicians apply encapsulation using heat-shrunk polymer or laminated casing, which strengthens mechanical integrity and improves sealing performance. In addition, quality control teams perform voltage calibration and load testing before final packaging.

Manufacturing Standards and Testing

Production follows internationally recognized safety and transport standards such as UN38.3, CE, RoHS, and UL compliance requirements. Moreover, manufacturers apply constant-current/constant-voltage (CC/CV) charging profiles, typically limiting charge voltage at 4.2V per cell. Cycle testing is also conducted under controlled temperature conditions to evaluate capacity retention across long-term usage. Finally, insulation resistance tests and short-circuit protection validation are executed to ensure structural reliability and electrical stability throughout the product lifecycle.

Creación de ejemplos, procesamiento y personalización disponibles

Características del producto

• 🔋 Capacidad verdadera: Salida nominal fiable con reducción de desvanecimiento a largo plazo de capacidad.
• 🔌 Baja autodescarga: Mantiene una energía estable durante largos periodos de almacenamiento.
• ⚡ Alto rendimiento de descarga: Baja resistencia garantiza una salida continua estable de 3A.
• 🛡️ Seguridad mejorada: Múltiples protecciones contra sobrecargas, sobredescargas y cortocircuitos.
• 📦 Estructura de bolsa compacta: Diseño delgado para conjuntos electrónicos compactos.
• ⚙️ OEM/ODM disponible: Configuraciones de pestañas, terminales y terminales personalizables.

Escenarios de aplicación

Nuestras baterías de litio se utilizan ampliamente en cuidado personal, electrónica inteligente, dispositivos de consumo y equipos médicos.

• Cuidado personal y salud: cepillos de dientes eléctricos, rastreadores de actividad física, dispositivos médicos
• Digital y Audio inteligentes: Auriculares, altavoces, luces
• Consumo y entretenimiento: Juguetes, productos electrónicos
