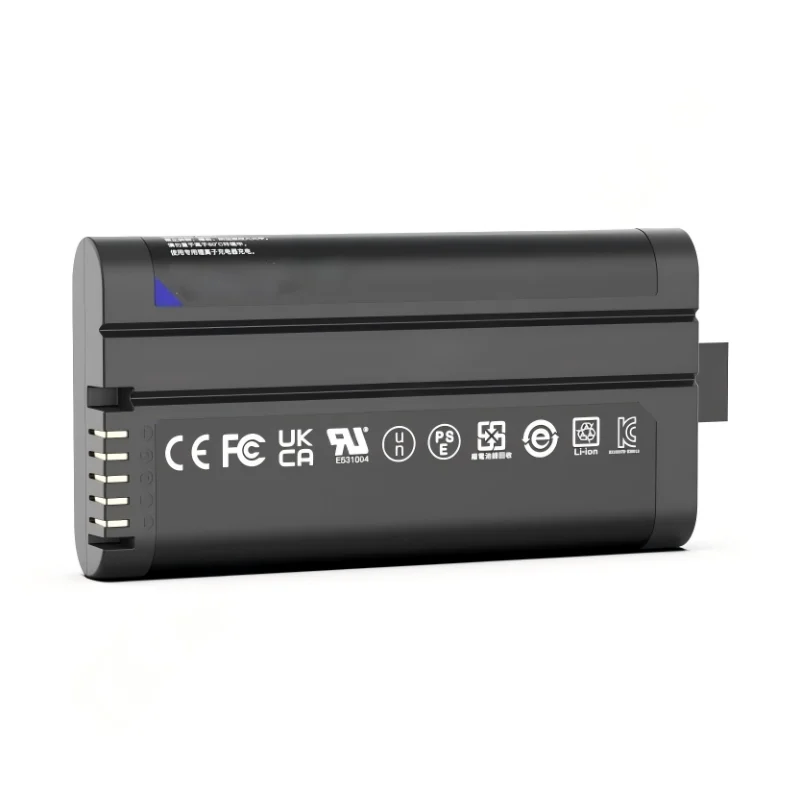

KYS2054HH Batería inteligente de litio de 14,4v

The Smart Battery 14.4v Lithium Battery combines four lithium-ion cell groups inside a compact electrical enclosure. Engineers arrange the cells in a controlled sequence to maintain the required voltage level. An internal electronic board collects operating information from each cell channel. Meanwhile, communication terminals transfer measurement signals to connected equipment. Protective switching components interrupt current flow whenever irregular electrical conditions appear.

Cell Materials and Internal Composition

Manufacturers produce the cell structure using lithium-based cathode compounds and graphite anode materials. Aluminum foil supports positive current transmission, while copper foil handles negative electron collection. A separator membrane sits between electrode layers and prevents direct contact during operation. In addition, technicians install insulation sheets around conductive sections to reduce leakage risk. The external shell uses reinforced polymer and metal supports to maintain alignment during movement and vibration.

Assembly Procedure and Electrical Routing

Operators connect the lithium cells through nickel tab welding and form a four-series electrical arrangement. After cell grouping, technicians attach balance wires and sensing leads to each connection point. The integrated circuit board samples voltage and temperature values continuously. Furthermore, MOSFET switching devices regulate charging and discharging pathways according to preset thresholds. Cable anchors stabilize internal wiring and reduce stress on terminal joints during repeated handling.

Heat Distribution and Structural Arrangement

Thermal energy moves through spacing channels placed between adjacent cell rows. Conductive interface pads help distribute heat across the enclosure surface. Instead of using rotating cooling components, the structure relies on internal spacing and material conductivity for temperature control. The outer housing absorbs compression forces and protects the internal assembly from external impact. Access openings allow technicians to inspect terminal areas without removing the full enclosure.

Standards and Manufacturing Verification

Production follows IEC 62133 and UN38.3 requirements for lithium battery assemblies. Engineers perform insulation testing, voltage retention checks, and repeated charge-discharge evaluations on each batch. Serial identification codes support traceability during manufacturing and transport procedures. Packaging inspections confirm terminal isolation before shipment release.

Características del producto

• 4S2P removable lithium-ion battery pack
• Cumple con las normativas en múltiples regiones del mundo
• Interfaz estándar de SMBus v1.1
• Indicador de Estado de Carga (SOC) LED integrado
• Utiliza pilas Panasonic, que presumen de la mayor densidad energética y estabilidad del mercado
• Cumple con las reglas de optimización de cobro de JEITA
• Características completas de protección de seguridad, incluyendo sobrecarga, sobredescarga, sobrecorriente, sobretemperatura y cortocircuitos
• Equipado con función de equilibrio para mejorar eficazmente la duración de la batería
• TI precise power calculation

Áreas de aplicación de productos

• Dispositivos médicos de Clase III
• Instrumentos de medición de precisión
• Ordenadores industriales
• Equipos de Ensayo No Destructivo
• Dispositivos industriales y médicos portátiles, etc.
