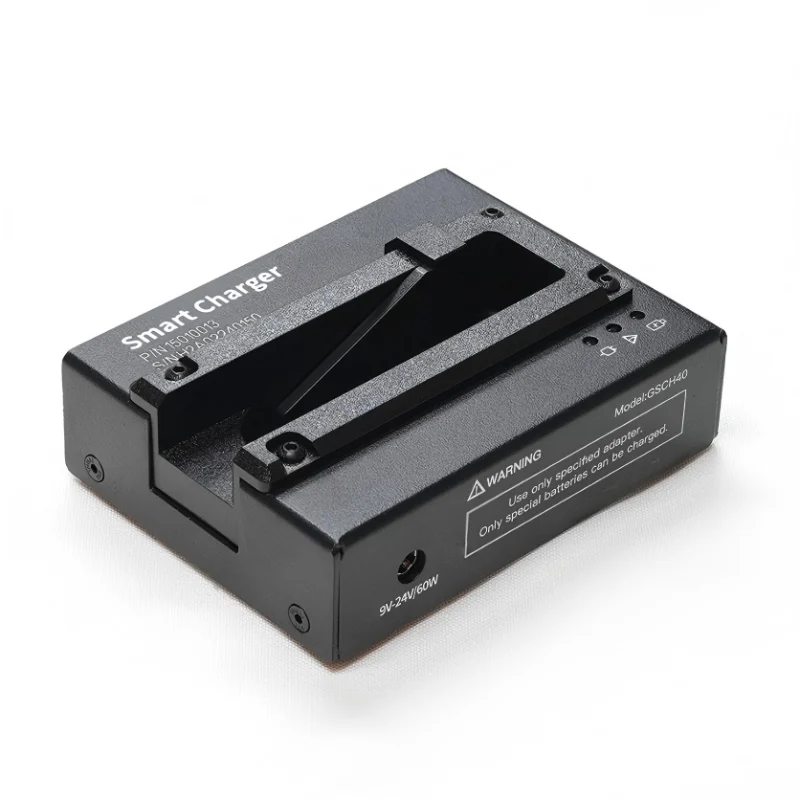

KYSCH40 Cargador de baterías de ion de litio de una sola ranura

Engineers design the single slot Li-ion battery charger (KYSCH40 series platform) using an independent charging channel architecture. First, they configure a single cradle bay to support cylindrical lithium cells with stable contact terminals. Then, a spring-loaded electrode system is integrated to adapt to different cell lengths while maintaining consistent pressure. Meanwhile, a microcontroller unit manages charging logic and continuously adjusts output current based on detected battery status. After structural assembly, the charger proceeds to electrical calibration and safety verification.

Electrical Control and Charging Logic

Manufacturers implement a CC/CV charging algorithm to regulate voltage and current during the full charging cycle. In addition, the system automatically identifies lithium-ion battery voltage characteristics before initiating charge flow. Furthermore, temperature feedback circuits are applied to monitor thermal conditions in real time. Meanwhile, charging termination is executed when current drops below threshold levels, ensuring controlled energy delivery without manual intervention. As a result, stable charge curves are maintained across different battery types.

Material Construction and Internal Design

Technicians construct the housing using flame-retardant ABS or PC composite materials to maintain insulation stability. Next, copper alloy charging contacts are positioned inside the slot to reduce resistance and improve conductivity. After that, the PCB board is mounted using vibration-resistant supports to minimize mechanical stress during operation. Meanwhile, ventilation slots are integrated into the casing to support passive heat dissipation during continuous charging cycles.

Safety Standards and Compliance

Engineers apply overcharge, over-discharge, reverse polarity, and short-circuit protection mechanisms throughout the system. Afterwards, endurance cycling tests are conducted to verify long-term operational stability. Finally, the Li-ion battery charger single slot complies with CE, RoHS, and IEC safety requirements, ensuring electrical safety, structural integrity, and transport reliability.

Campos de aplicación

The single slot charger is commonly used in cylindrical lithium battery maintenance systems, portable electronic device charging setups, industrial battery testing environments, and field equipment power management stations where controlled single-cell charging is required.

Características del producto

• Wide voltage input/output
• Interfaz estándar de SMBus v1.1
• LED charging status indicator
• Complies with JEITA charging optimization rules
• Scientific charging curve for efficient charging and guaranteed battery life
• Intelligent battery identification, compatible with all KYS smart batteries
