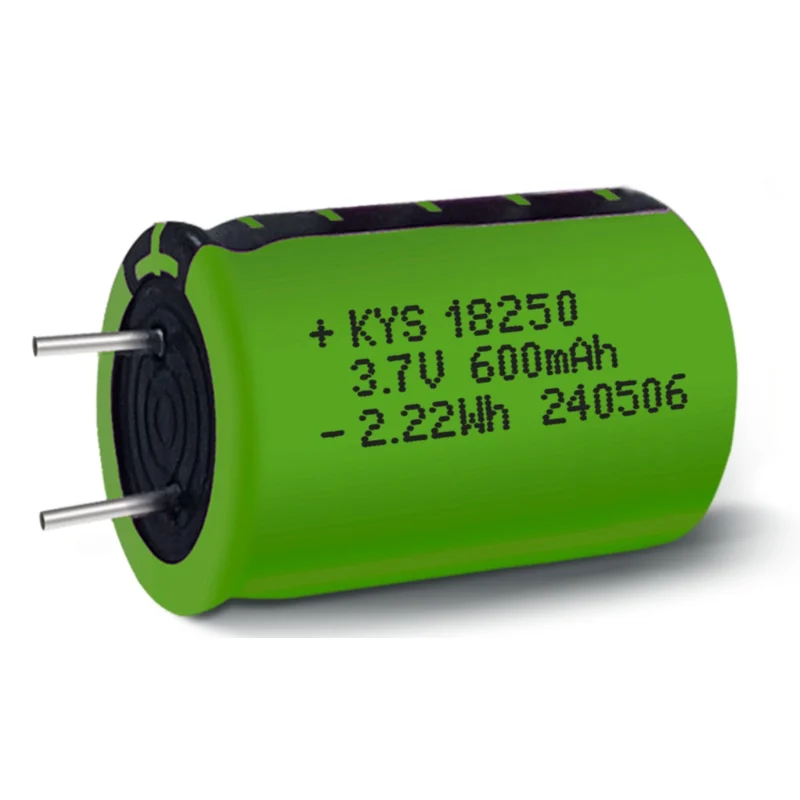

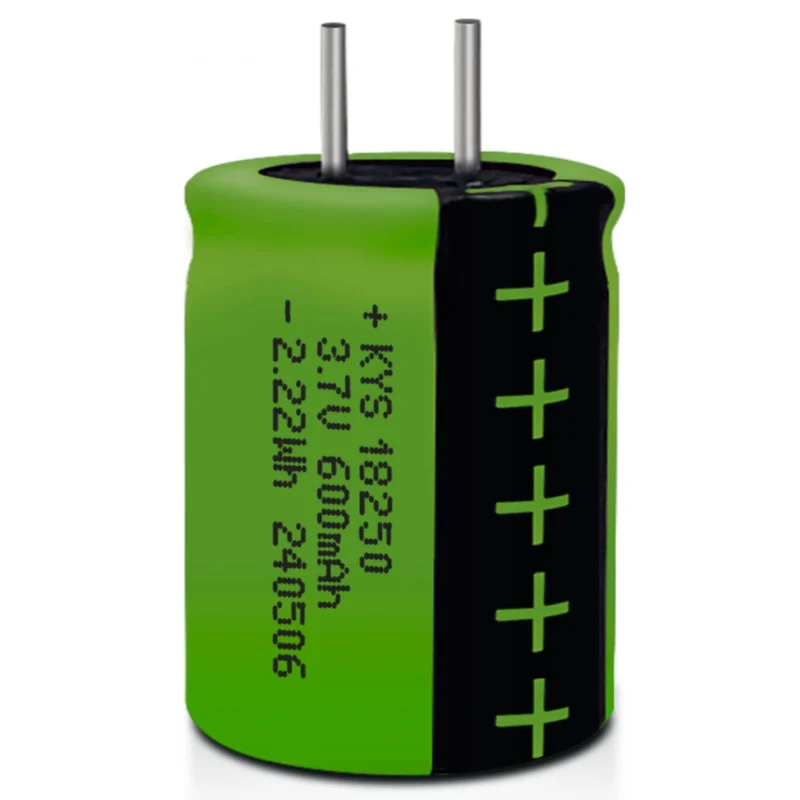

18250 Grandes Celdas Supercondensadoras de 3,7V

Large Supercapacitor Cells Structural Overview

Engineers construct large supercapacitor cells by organizing electrochemical double-layer structures inside a sealed cylindrical or prismatic enclosure. First, they stack activated carbon electrodes with a high-surface-area separator membrane, and they assemble the layers into a tightly compressed electrode roll or stacked block. Meanwhile, technicians maintain precise pressure control during assembly to ensure uniform pore distribution across the electrode interface. After that, they place the electrode assembly into a rigid metal housing and stabilize mechanical alignment before electrolyte filling begins.

Electrode Material System and Ionic Medium

Manufacturers prepare electrodes using porous activated carbon mixed with conductive carbon additives and polymer binders, and they coat this mixture onto aluminum current collectors. In addition, they introduce an organic electrolyte system containing quaternary ammonium salts dissolved in carbonate solvents, enabling rapid ionic movement across the porous network. Furthermore, they incorporate microporous separator films to prevent internal short circuits while maintaining ion diffusion pathways. Meanwhile, the enclosure uses aluminum or steel casing materials to preserve structural integrity under repeated charge-discharge stress cycles.

Cell Fabrication and Assembly Process

Technicians begin electrode production by dispersing carbon powder, conductive agents, and binder systems into a uniform slurry, and they apply this slurry onto metal foils using precision coating lines. Then, they dry the coated electrodes under controlled thermal conditions to remove residual solvents. After that, they compress the electrode layers through calendaring to optimize density and surface uniformity. Subsequently, they cut and assemble the electrodes into cylindrical or stacked configurations and wind or press them into a compact core structure. Meanwhile, they install current collectors and terminal interfaces using resistance welding or mechanical compression bonding.

Formation Testing and Industrial Standards Compliance

Engineers conduct initial charge conditioning cycles to stabilize electrode-electrolyte interfaces and ensure uniform charge distribution across the cell. Then, they perform long-duration cycling tests to evaluate capacitance retention and internal resistance stability under controlled temperature conditions. Finally, quality teams execute dimensional inspection, electrical parameter validation, and sealing verification. Throughout production, manufacturers align with IEC energy storage safety guidelines and industrial reliability standards commonly applied to high-capacitance supercapacitor systems used in high-power electronic designs.

Características del producto

1. 🛠️ Personalizable
   Personalizable para satisfacer las necesidades del cliente
2. ⚡ Alta potencia
   Tasa máxima de descarga de 20ºC disponible
3. ⏱️ Vida Larga en Ciclo
   Cubre las necesidades de uso a largo plazo del producto
4. 🛡️ Alta seguridad
   Superó pruebas de seguridad exhaustivas
5. 🔋 Capacidad Nominal Verdadera
   Coincide con la capacidad de diseño del producto
6. ⚛️ Opciones Multi-Química
   Cubre sistemas LCO, NCM, NCA y LFP
7. 🧰 Mecanismo de Protección Múltiple
   Placa de protección integrada con protección contra sobrecarga, sobredescarga, sobrecorriente y cortocircuitos

Áreas de aplicación de productos

Este producto es adecuado para una variedad de dispositivos electrónicos portátiles y eléctricos, con aplicaciones típicas que incluyen:

• Cuidado personal y salud: Cepillos de dientes eléctricos, dispositivos de belleza, rastreadores de actividad física, dispositivos médicos

• Digital y Audio inteligentes: Auriculares, altavoces, nebulizadores, juguetes, luces

• Pago financiero y oficina: Máquinas POS, fichas USB, impresoras portátiles
