Inicio / 7,4V 2600mAh 2S1P 18650 Batería de Iones de Litio para sistemas de monitorización de bombas de infusión, ciclo de vida de 1200

7,4V 2600mAh 2S1P 18650 Batería de Iones de Litio para sistemas de monitorización de bombas de infusión, ciclo de vida de 1200

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack delivers stable, rechargeable power for infusion pump monitoring systems and portable medical equipment. Designed for up to 1,200 cycles, it helps reduce replacement frequency and maintenance costs. Built-in protection supports safer operation, while customizable connectors, wiring, housings, and sensors ensure compatibility with different clinical and home healthcare applications in daily use worldwide.

Modelo: 18650-2S1P
Dimensiones de las celdas: 18× 65 mm
Voltaje nominal: 7,4V
Corriente de descarga: 7.8 A
Capacidad: 2600 mAh
Resistencia interna: 80 mΩ
Aplicación: Infusion Pump Monitoring Systems
Voltaje de carga: 8.4 V

Obtén un presupuesto gratuito

Volver a la lista de productos

7,4V 2600mAh 2S1P 18650 baterías de iones de litio para bombas de infusión

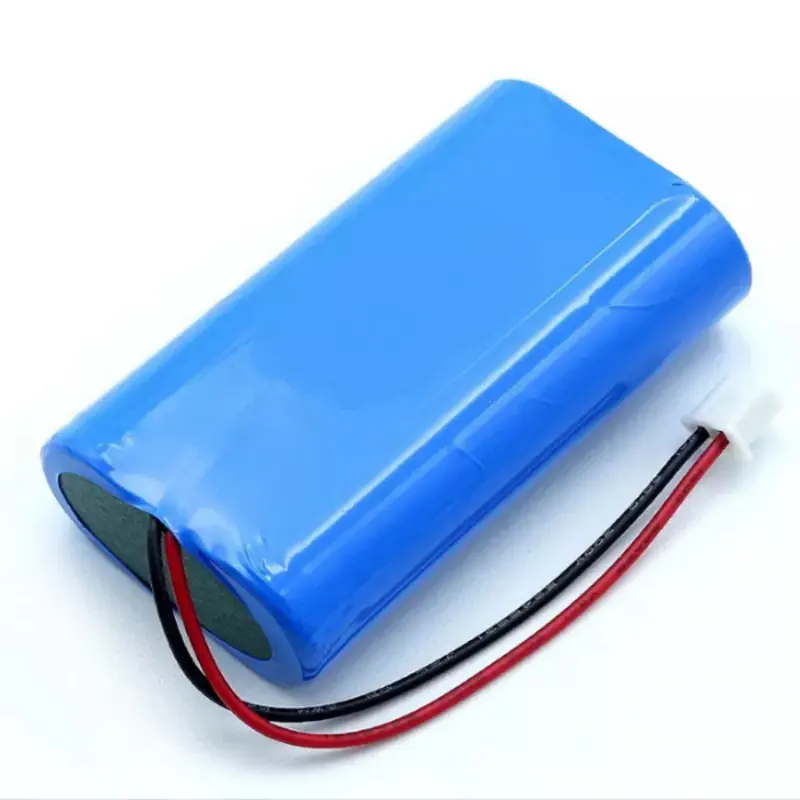

Rechargeable medical battery with 1200-cycle life for monitoring equipment

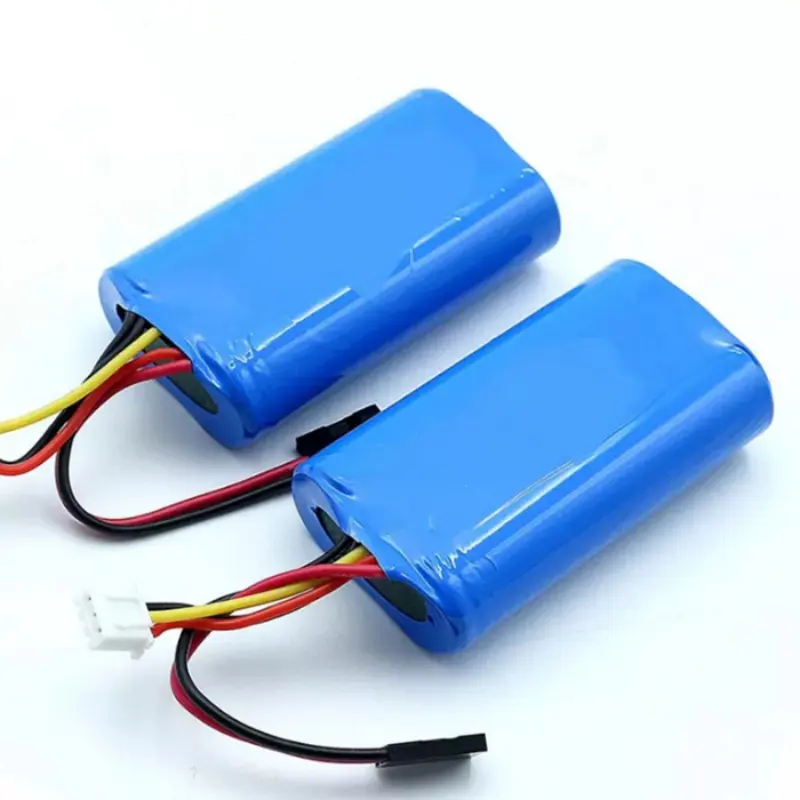

Compact 18650 battery pack for portable infusion pump systems

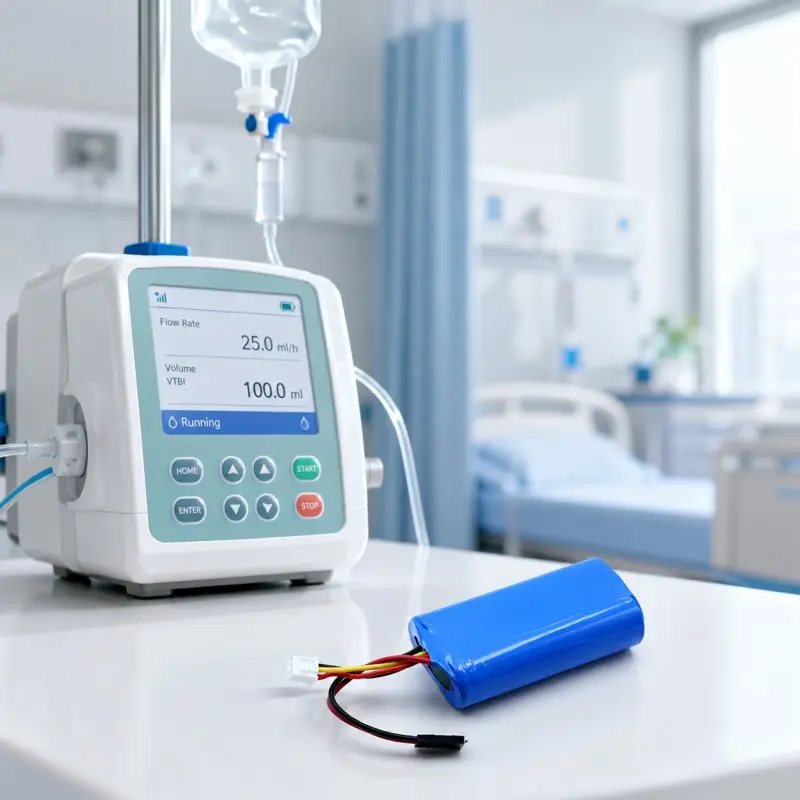

Batería de recambio de larga duración para equipos de seguimiento de pacientes y clínicos

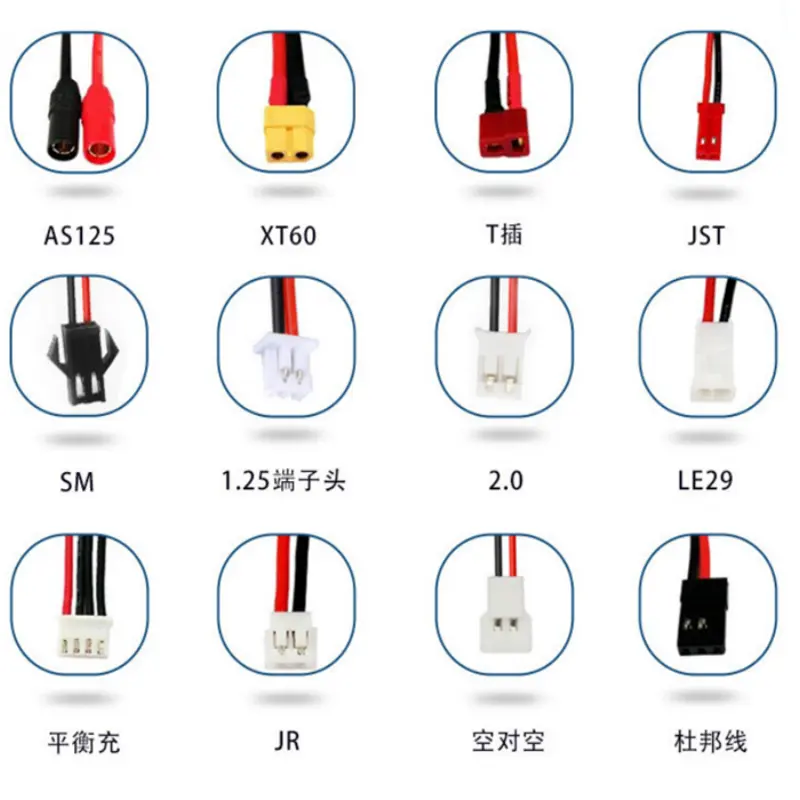

Custom 7.4V lithium battery with protection circuit for medical devices

Resumen

Detalles del producto

Parámetros técnicos

Contacto

Productos relacionados

Resumen

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack is designed for infusion pump monitoring systems and other portable medical equipment requiring stable, rechargeable power. Built with two high-quality 18650 cells connected in series, it delivers a nominal voltage of 7.4V and dependable 2600mAh capacity for consistent operation. With a cycle life of up to 1,200 charges under suitable operating conditions, the pack helps reduce replacement frequency and long-term maintenance costs. An integrated protection circuit helps protect against overcharging, over-discharging, overcurrent, and short circuits, supporting safer use in clinical environments. The battery can be customized with specific connectors, wire lengths, housings, temperature sensors, and communication functions to match different infusion pump designs. Compact construction, reliable discharge performance, and OEM/ODM flexibility make this battery pack suitable for hospitals, clinics, ambulances, and home healthcare applications where uninterrupted monitoring and mobility are essential. It also supports customized labeling, packaging, and validation requirements for manufacturers.

Detalles del producto

7.4V 2600mAh Output: Provides stable rechargeable power for infusion pumps, monitoring systems, and portable medical equipment.

2S1P Configuration: Two 18650 lithium-ion cells are connected in series to achieve a compact and reliable 7.4V battery system.

Vida Larga del Ciclo: Supports up to 1,200 charge and discharge cycles under appropriate charging, temperature, and operating conditions.

Protección Integrada: Built-in protection helps prevent overcharging, over-discharging, overcurrent, and short circuits.

Compacto y ligero: The space-saving structure is suitable for installation inside portable medical devices.

Diseño personalizable: Connectors, wire lengths, battery housing, BMS, temperature sensors, labels, and packaging can be customized.

Rendimiento fiable: Delivers consistent power for continuous monitoring and mobile clinical use.

Áreas de aplicación

Bombas de infusión
Bombas de jeringuilla
Sistemas de monitorización de infusión
Monitores portátiles para pacientes
Equipos de diagnóstico médico
Dispositivos médicos de emergencia
Equipos de atención domiciliaria
Instrumentos clínicos portátiles

Parámetros técnicos

Modelo	18650-2S1P
Tamaño de la celda	18 × 65mm
Corriente de descarga	7.8 A
Voltaje nominal	7,4V
Capacidad	2600 mAh
Resistencia interna	80 mΩ
Método de procesamiento	Personalizado según se requiera
Aplicación	Infusion Pump Monitoring Systems
Voltaje de carga	8,4V
