Hogar / 18650-1P2S 2200mAh 7,4V Batería Externa

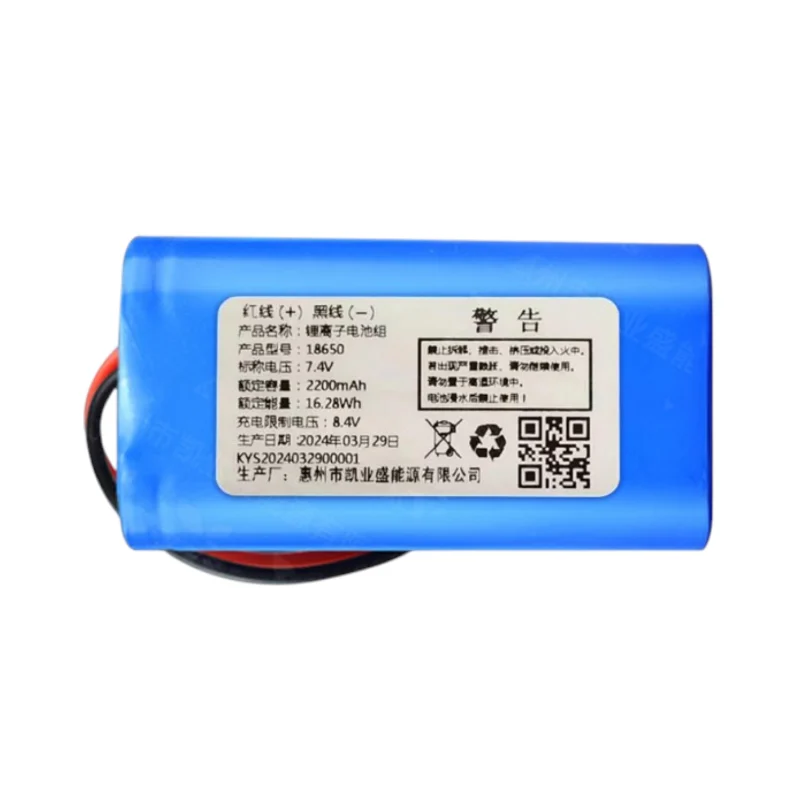

This 7.4V lithium battery pack delivers stable, reliable power for a wide range of devices. Built for long-lasting performance with low self-discharge and multiple safety protections. Perfect for personal care, smart electronics, payment devices, and medical equipment. OEM customization available.
- Model: 18650-1P2S-7.4 V
- Cell Dimensions: 22 × 38 × 68 mm
- Voltaje nominal: 7,4 V
- Discharge Current: 15~25 A
- Capacity: 2200 mAh
- Internal Resistance: 180 mΩ
- Application: Electronic Devices
- Charging Voltage: 8.4 V
Obtén un presupuesto gratuito
Volver a la lista de productos
Resumen
The Gloflux 7.4V Lithium-Ion Battery Pack delivers stable and efficient power for a wide range of electronic devices. It is designed for systems that need reliable energy output and flexible installation. The structure supports an external battery pack configuration, which improves usability and simplifies power management for different applications.
External Battery Pack Flexibility
The external battery pack design allows users to connect and replace the power source easily. As a result, devices gain better flexibility in operation and maintenance. In addition, this structure reduces internal space limitations. Therefore, product designers can focus on compact device layouts while maintaining strong battery performance.
Stable 7.4V Dual-Cell Performance
The battery pack uses a 7.4V dual-cell lithium configuration to ensure stable output. Moreover, it delivers consistent voltage under different load conditions. The system also improves energy efficiency during continuous use. Consequently, devices achieve smoother performance and longer operating time.
Built-in Safety and Protection System
The battery pack includes an integrated Battery Management System for full protection. It prevents overcharge, over-discharge, overcurrent, and short-circuit problems. In addition, it monitors temperature during operation. Therefore, the system improves safety and helps extend overall battery lifespan.
Efficient External Installation Design
The external battery pack structure supports easy connection to a wide range of devices. Furthermore, it simplifies replacement and reduces maintenance effort. For example, it works well in portable electronics, industrial equipment, and smart systems. As a result, users can manage power more efficiently in different environments.
Detalles del producto
Características del producto
- 🛠️ Customizable
Customizable to meet customer requirements - ⚡ High Power
Max. 20C discharge rate available - ⏱️ Long Cycle Life
Meets long-term product usage needs - 🛡️ High Safety
Passed comprehensive safety tests - 🔋 True Rated Capacity
Matches the product design capacity - ⚛️ Multi-Chemistry Options
Covers LCO, NCM, NCA and LFP systems - 🧰 Multi-Protection Mechanism
Built-in protection board with overcharge, overdischarge, overcurrent and short-circuit protection
Áreas de aplicación de productos
This product is suitable for a variety of portable and powered electronic devices, with typical applications including:
-
Personal Care & Health: Electric Toothbrushes, Beauty Devices, Fitness Trackers, Medical Devices
-
Smart Digital & Audio: Headphones, Speakers, Nebulizers, Toys, Lights
-
Financial Payment & Office: POS Machines, USB Tokens, Portable Printers
Parámetros técnicos
| Modelo | 18650-1P2S-7.4 V |
| Tamaño de la celda | 22 × 38 × 68 mm |
| Corriente de descarga | 15~25 A |
| Voltaje nominal | 7.4 V |
| Capacidad | 2200 mAh |
| Resistencia interna | 180 mΩ |
| Método de procesamiento | Personalizado según se requiera |
| Aplicación | Electronic Devices |
| Voltaje de carga | 8.4 V |
