501040 batería 3,7V

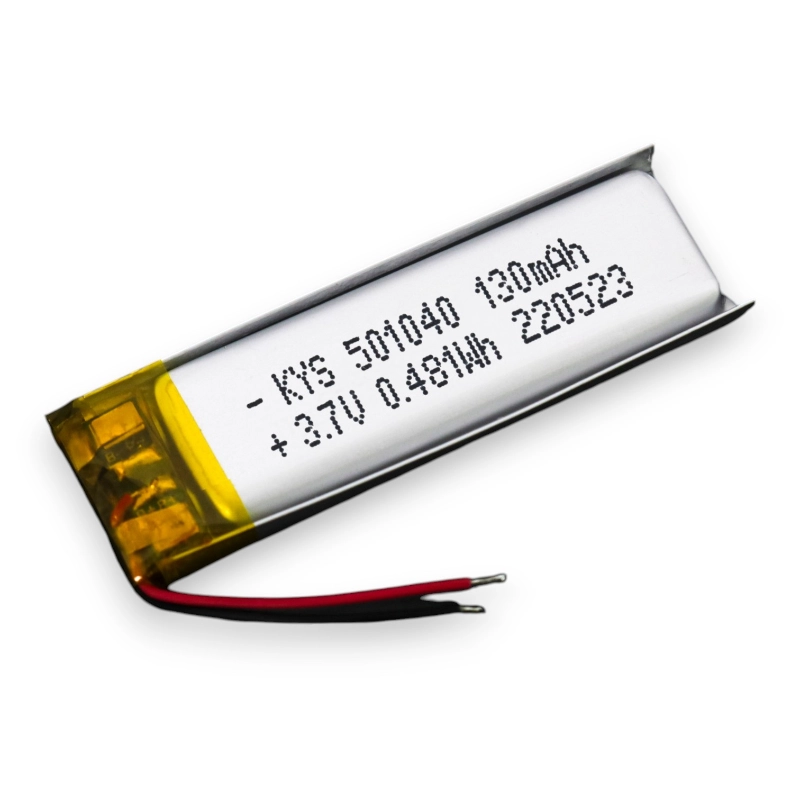

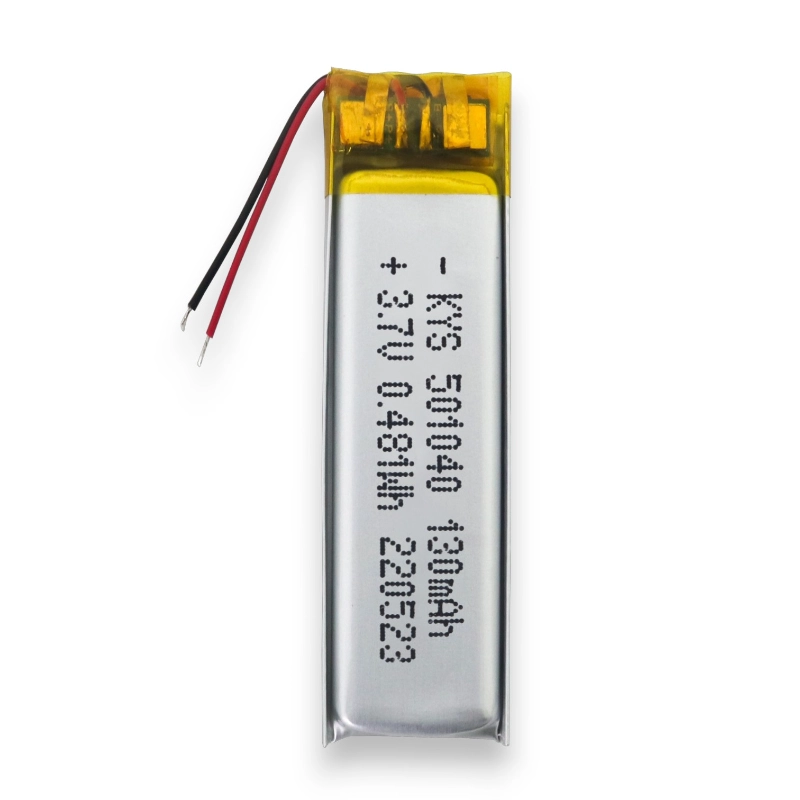

501040 3.7V Battery Structural Overview

Engineers construct the 501040 3.7V lithium polymer battery using a compact pouch-cell geometry with a defined dimensional standard. First, they align the electrode stack in a flat layered format, ensuring consistent thickness across the cell body. Then, technicians position the cathode, separator, and anode in a controlled stacking sequence to maintain uniform internal spacing. Meanwhile, insulation films are inserted at boundary zones to reduce mechanical stress during sealing. After stacking, the structure moves into lamination and pouch forming processes. (Model specification reference: 501040 size approx. 5×10×40 mm cylindrical naming standard system)

Electrode Materials and Internal Chemistry

Manufacturers build the cathode using lithium metal oxide coated on aluminum foil, while the anode uses graphite-based carbon material applied on copper foil. In addition, a microporous polymer separator is placed between electrodes to enable ion transport while preventing direct contact. Furthermore, the electrolyte consists of lithium salts dissolved in organic carbonate solvents, and moisture control is strictly maintained during preparation and filling. Meanwhile, the aluminum-plastic laminated film forms the external enclosure, replacing rigid metal housing with a flexible sealed structure.

Manufacturing Process and Cell Forming

Technicians begin by preparing electrode slurries using active materials, conductive additives, and polymer binders, mixing them into a uniform paste. Next, automated coating equipment applies the slurry onto metal foils with controlled thickness accuracy. After drying, calendaring rollers compress the electrodes to achieve stable density. Subsequently, the electrodes are cut into precise dimensions matching the 501040 form factor and stacked into layered assemblies. Meanwhile, alignment systems continuously verify positioning accuracy before sealing.

Normas de Ensayo de Formación y Cumplimiento

Engineers perform initial charge-discharge cycling to activate electrochemical stability and balance internal interfaces. Afterwards, aging tests evaluate voltage consistency and internal resistance drift over time. Finally, sealing inspection, electrical verification, and safety testing are completed. Throughout production, the 501040 3.7V battery follows IEC safety requirements and UN38.3 transport standards, ensuring structural reliability, electrical stability, and shipping compliance.

Características del producto

1. 🛠️ Personalización flexible
   Permite añadir cables, PCB de protección, conectores de terminales y otras personalizaciones según los requisitos del cliente
2. ⚡ Alta potencia
   Tasa máxima de descarga de 20ºC disponible
3. ⏱️ Vida Larga en Ciclo
   Cubre las necesidades de uso a largo plazo del producto
4. 🛡️ Alta seguridad
   Superó pruebas de seguridad exhaustivas
5. 🔋 Capacidad Nominal Verdadera
   Coincide con la capacidad de diseño del producto
6. ⚛️ Opciones Multi-Química
   Cubre sistemas LCO, NCM, NCA y LFP
7. 🧰 Mecanismo de Protección Múltiple
   Placa de protección integrada con protección contra sobrecarga, sobredescarga, sobrecorriente y cortocircuitos

Áreas de aplicación de productos

Este producto es adecuado para una variedad de dispositivos electrónicos portátiles y eléctricos, con aplicaciones típicas que incluyen:

• Cuidado personal y salud: Cepillos de dientes eléctricos, dispositivos de belleza, rastreadores de actividad física, dispositivos médicos

• Digital y Audio inteligentes: Auriculares, altavoces, nebulizadores, juguetes, luces

• Pago financiero y oficina: Máquinas POS, fichas USB, impresoras portátiles
